01 · BMS
BMS Balance Wires 16S Rainbow
16S balance-wire harness shown with multiple colour-coded leads and a multi-pin connector.
Visible specification: 16S Rainbow BMS Balance Wires.
EV BIKES · WIRES
EV Bikes Wires & Cables.
A dedicated catalogue for selected EV bike wiring and cable components. Each item below is shown from the supplied product image, with its visible name and specifications kept clear.
WIRE CATALOGUE
Selected EV Bike Wiring.
Product names and visible specifications below are based on the supplied product images.
02 · MOTOR

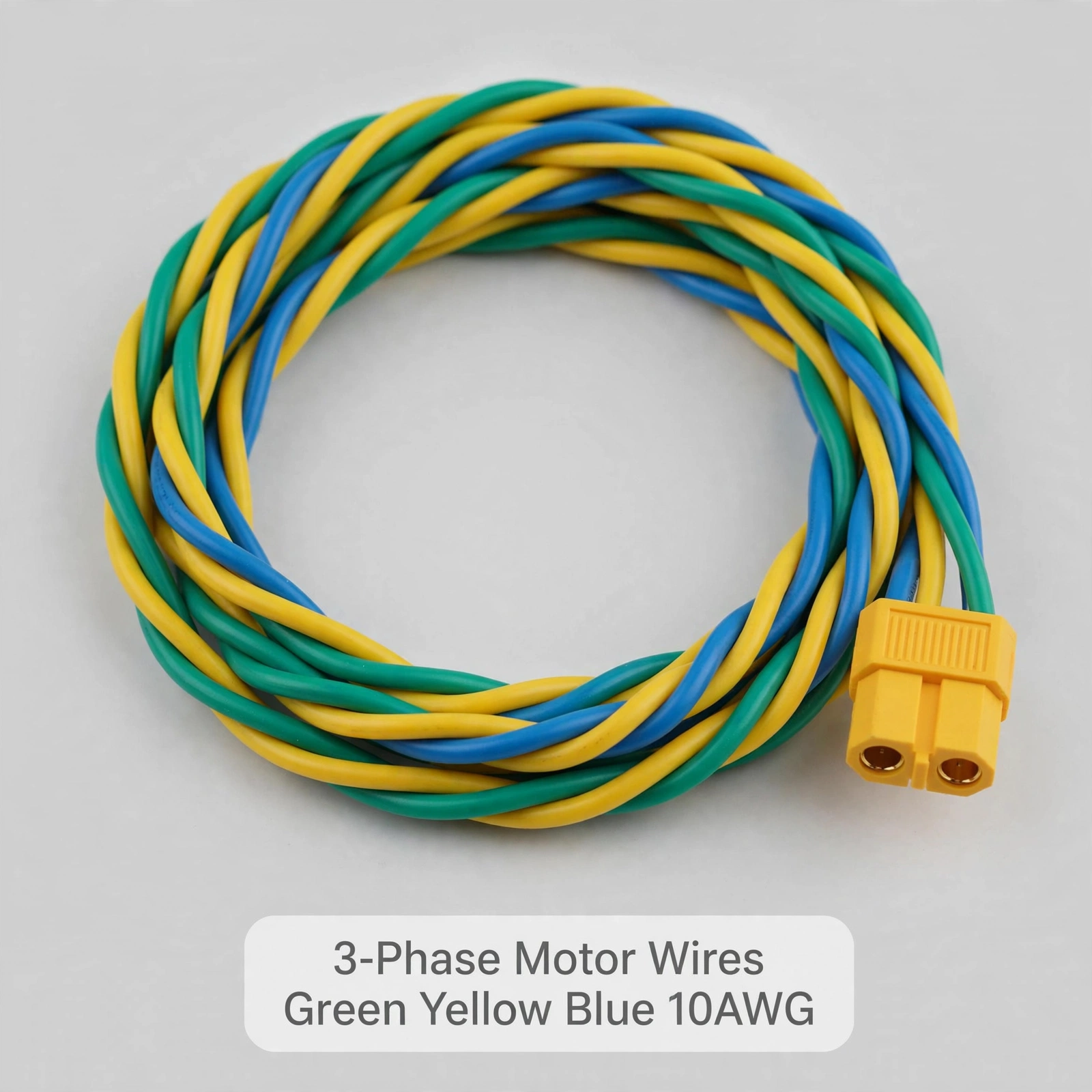

3-Phase Motor Wires
Three colour-coded motor wires shown with a connector for EV/e-bike motor wiring.
Visible specification: Green / Yellow / Blue · 10AWG.
03 · SENSOR
Hall Sensor Wire 5-Pin
A 5-pin Hall sensor cable for signal and sensor connections in an EV-bike system.
Visible specification: Signal · GND · 5V · Speed · Length shown: 15cm.
04 · BATTERY POWER

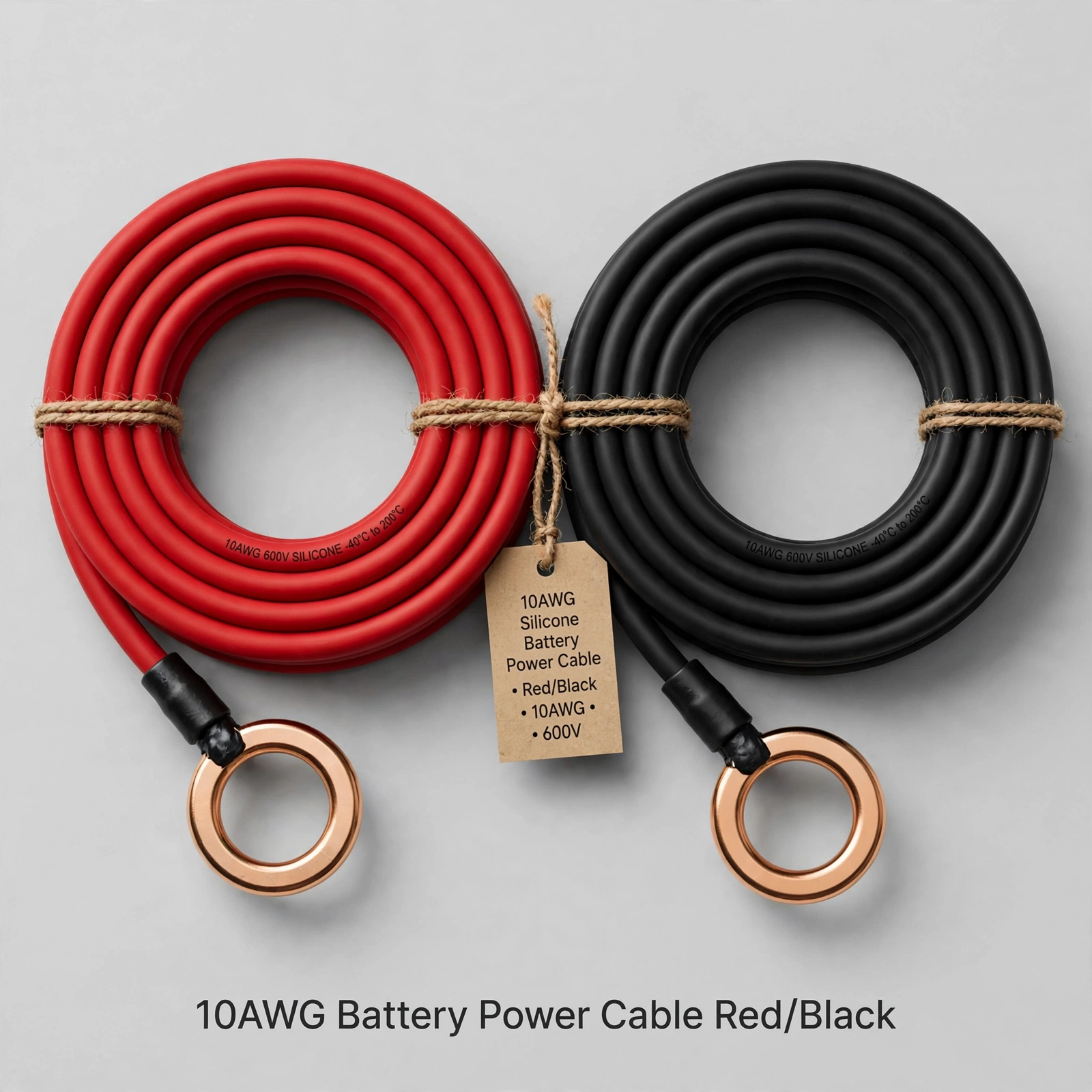

10AWG Battery Power Cable
Red and black silicone battery power cables with ring terminals for battery power connections.
Visible specification: Red/Black · 10AWG · 600V silicone cable.
05 · THROTTLE & CHARGER

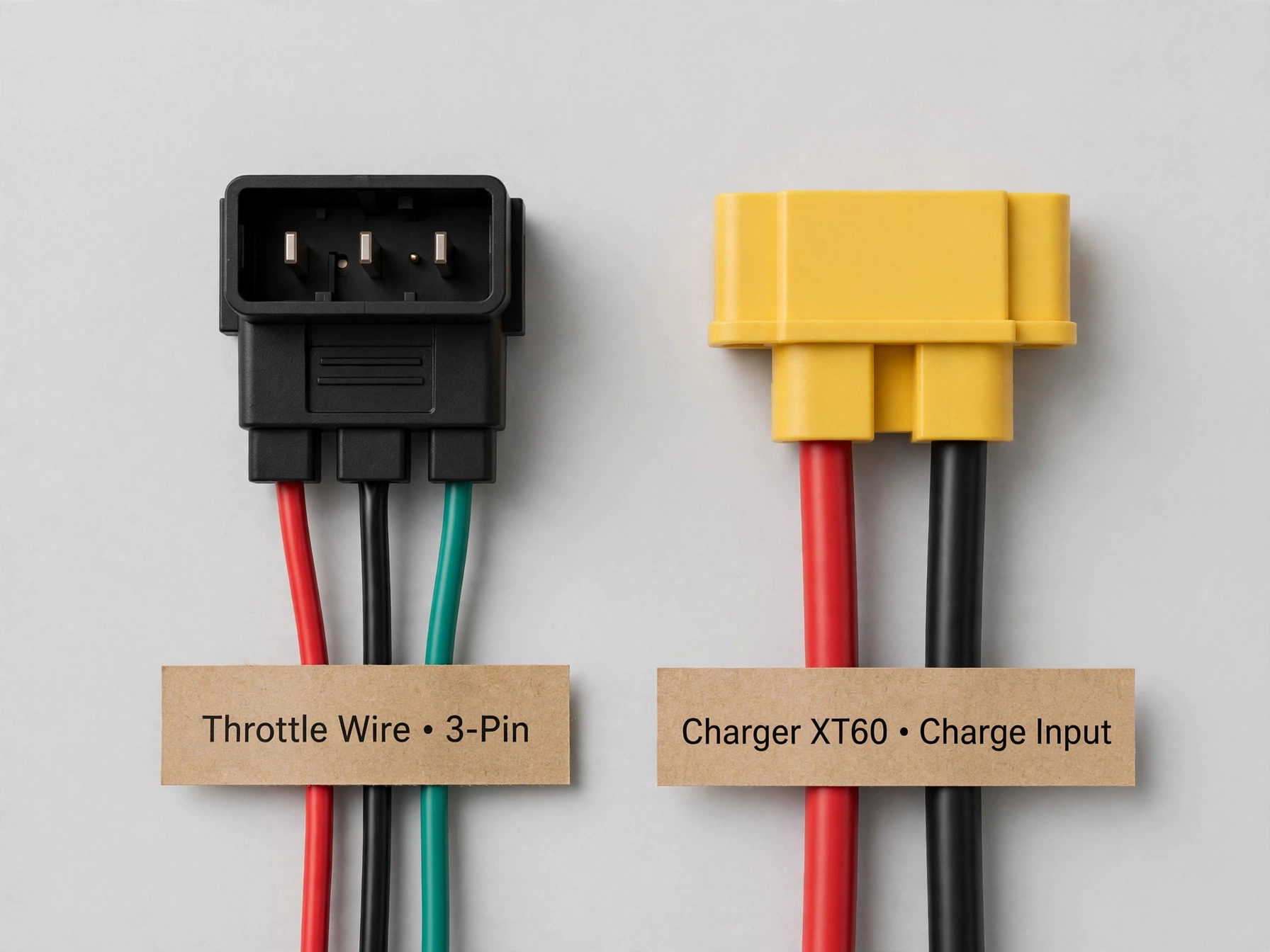

Throttle Wire + Charger XT60
The supplied image shows a 3-pin throttle wire and an XT60 charger connection for charge input.
Visible specification: Throttle Wire · 3-Pin; Charger XT60 · Charge Input.
Compatibility: Connector type, wire gauge, pin arrangement and battery configuration should be matched to the specific EV bike/controller/BMS before ordering.
EV BIKE WIRES INQUIRY
Ask About Wires Need the right wire or cable?
Send your EV bike model and the wire or connector you need so availability and compatibility can be checked.
